When buying a pallet trolley for a warehouse, retail store, or logistics hub, the most important consideration is how much weight it can safely handle.
Most standard manual pallet trolleys come with a weight capacity of 4,500 to 5,500 pounds. On the other hand, electric pallet trolleys can easily handle loads in the 2,500-to-8,000-pound range.
The exact weight capacity of a pallet trolley depends on several factors, such as the machine’s size, intended purpose, fork length, floor condition, and more.
This detailed pallet trolley weight capacity guide can help you figure out how much weight your pallet trolley can handle without risking equipment damage or worker safety. So, let’s get started.
- What Is a Pallet Trolley?
- How to Calculate Safe Load Weight for Your Pallet Trolley
- Typical Pallet Trolley Weight Capacity by Type
- Factors That Affect the Weight Capacity of a Pallet Trolley
What Is a Pallet Trolley?
A pallet trolley has several names, such as pallet jack or pallet truck. These useful material handling solutions allow you to safely lift and move heavy pallets from one location to another, even in a tight workspace where large forklifts are not an ideal option.
Here are some common components of a typical pallet truck:
- Two metal forks
- An ergonomic steering handle
- A hydraulic pumping mechanism in manual trolleys
- Battery-powered motors in electric pallet trucks
- Swivel steering wheels for easy movement
- Control panel for lifting, moving, and lowering functions
Pallet trolleys make the process of moving pallets in a warehouse, transporting products within retail stores, and stocking or restocking goods in storage facilities easier, safer, and more efficient.
How to Calculate Safe Load Weight for Your Pallet Trolley
It is crucial that you know exactly how much weight you can handle with your pallet trucks without risking safety. To do that, you first need to estimate the total weight of the load. Here is how you can do that.
Total Pallet Load = Product Weight + Packaging Weight + Empty Pallet Weight
For example, if the product weighs 1,800 kg, the packaging weighs 50 kg, and the pallet weighs 25 kg, the total weight that the trolley must move is 1,875 kg.
Now, if the weight capacity of your industrial weighing solutions or pallet trolleys is 2,500 kg, it can handle this weight. However, you still need to leave some safety margin to make this even safer.
The 80% Rule
You can do this by using the 80% rule. A common best practice is to operate at around 80% of the rated capacity to provide an additional safety margin.
For example:
If the trolley’s manual says it can handle 2,500 kg loads, you can multiply this number by 0.8. The answer will be about 2000 kg. This means loads below 2,000 kg provide an additional safety margin under normal operating conditions.
Typical Pallet Trolley Weight Capacity by Type
This section lists different pallet trolley types that we use in commercial settings, along with their weight capacities.
- Manual Pallet Trolleys
Standard manual pallet trolleys have a weight capacity between 2,000 and 5,500 pounds.
These are the most common pallet trolleys that use a basic pump handle system along with hydraulic cylinders to lift, lower, and move heavy loads. Since these trolleys rely on manual operation, their practical load capacity is generally lower than that of powered models.
These are perfect for small warehouses, stores with tight aisles, and low-volume manufacturing units with limited space.
- Heavy-Duty Pallet Trolleys
The weight capacity of these pallet trolleys ranges from 8,000 to 15,000 pounds, depending on the model.
These manual pallet trolleys come with reinforced frames as well as stronger hydraulic systems. These trolleys also have more durable wheels and sturdy handles.
Heavy-duty pallet trolleys can easily handle exceptionally heavy loads without any stability or reliability issues. These models are commonly used in industrial manufacturing plants, the steel industry, and the shipping sector.
- Electric Pallet Trolley
The load capacity of an electric pallet trolley falls in the range of 3,000 to 8,000 pounds.
Electric pallet trolleys use battery-powered motors and advanced lifting/lowering and moving controls to move pallets. These machines reduce the amount of manual effort required, and that is what makes them effective for handling frequent, larger loads. These trolleys work best in large warehouses, distribution centers, and operations with high-volume pallet handling requirements.
- Scissor Lift Pallet Jacks
These trucks combine a pallet jack with a lift table. This allows loads to be raised to a more ergonomic working height. These pallet trolleys have weight capacities between 2,200 and 3,300 lbs.

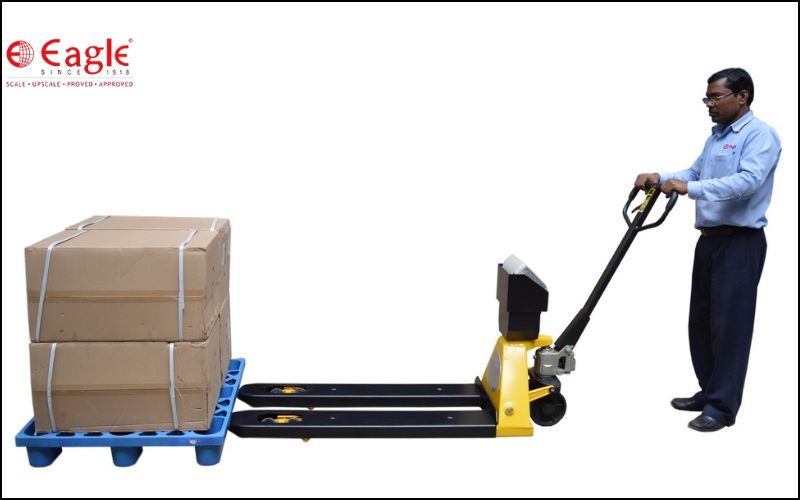

- Weigh Scale Pallet Trolleys
These pallet trolleys have a weight capacity between 4,400 and 5,500 lbs. The forks of these units contain load cells that measure the pallet’s weight and display it on a screen on the control unit.
Pallet trolley scales enhance efficiency by allowing you to weigh and move the loads simultaneously.
Factors That Affect the Weight Capacity of a Pallet Trolley
The weight capacity of a pallet trolley depends on several factors that you must consider to make a better choice. This can help you pick industrial weighing and material handling solutions that not only enhance safety but also lead to greater efficiency and ROI in the long run.
Here is what you need to consider.
- The pallet trolley’s material quality directly affects how much weight it can handle safely. Trolleys with reinforced steel and sturdy wheels are ideal for high-duty applications.
- The length and width of the forks affect the weight distribution as well as the load stability of the pallet trolley. For heavier loads, longer and wider forks work best.
- The weight capacity of the pallet trolley also depends on the quality of its wheels. High-quality wheels lead to easier movement and more stability, which allows you to move heavy loads safely.
- The required weight capacity also depends on the operational environment, such as space availability or foot traffic.
Conclusion
The weight capacity of a pallet trolley is a key consideration when you buy this important tool. Typically, manual pallet trolleys can handle pallets that weigh between 2,000 and 5,500 lbs. Electric trolleys, on the other hand, can typically handle loads ranging from 3,000 lbs to 8,000 lbs.
To make sure you find a perfect pallet trolley, consider how much weight you need to handle and then compare this number with the manufacturer’s ratings. This helps ensure that heavy loads can be moved safely and efficiently, even in busy or high-traffic industrial or commercial settings.
Visit us at Eagle MEA today to order our top-quality pallet trolleys that come with greater weight capacity and load stability for all warehouse, industrial, or retail applications.
FAQs
How much weight can a pallet trolley handle on average?
Standard pallet trolleys typically handle loads between 2,000 kg and 2,500 kg (approximately 4,400–5,500 lbs). Some heavy-duty models can handle 5,000 kg or more, while specialized models may exceed this capacity.
How can you figure out the weight capacity of a pallet trolley?
To do this, you can look at the manufacturer’s label or product documentation.
How long do pallet trolleys last?
Pallet trolleys that undergo regular maintenance can last five to ten years without any significant performance issues.
What happens when you overload a pallet trolley?
This results in equipment damage or failure. It can also cause tipping or injury risks.
Can a pallet jack lift as much as a forklift?
Pallet trolleys are designed for small spaces and low-load applications. This means they cannot lift as much as a forklift. Forklifts feature stronger frames and more advanced controls that can help you move extremely heavy loads in large industrial facilities.
