Load Cells

Cardinal

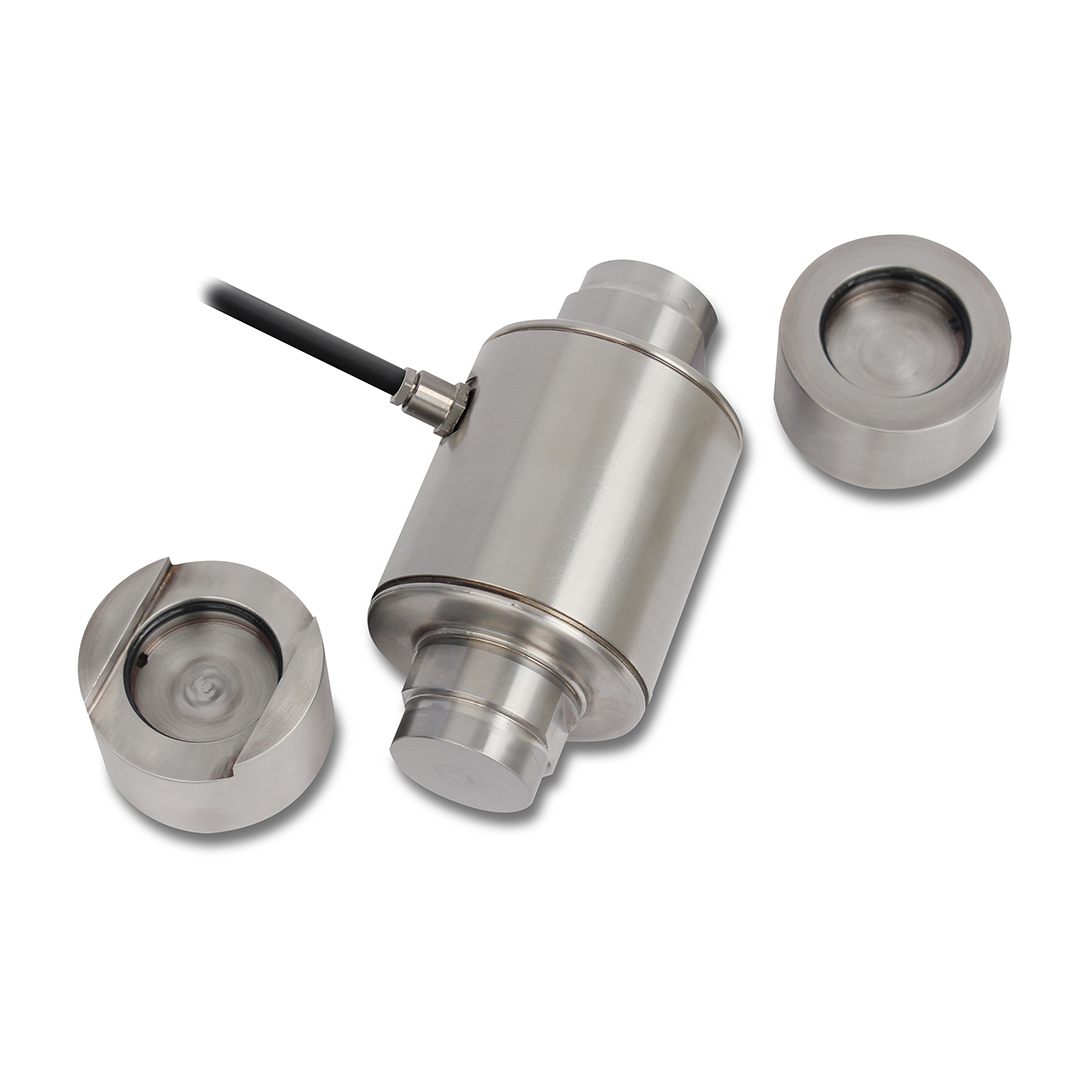

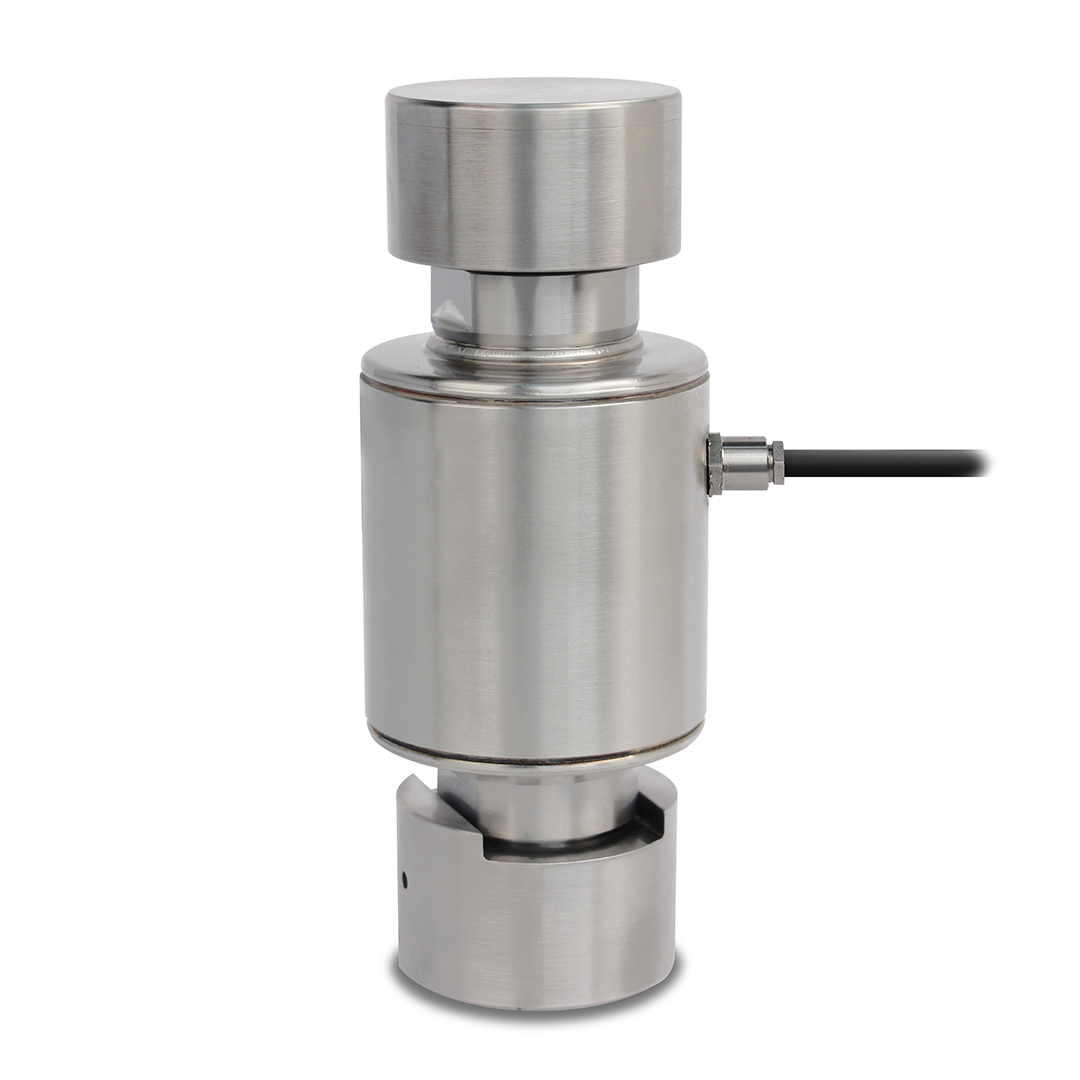

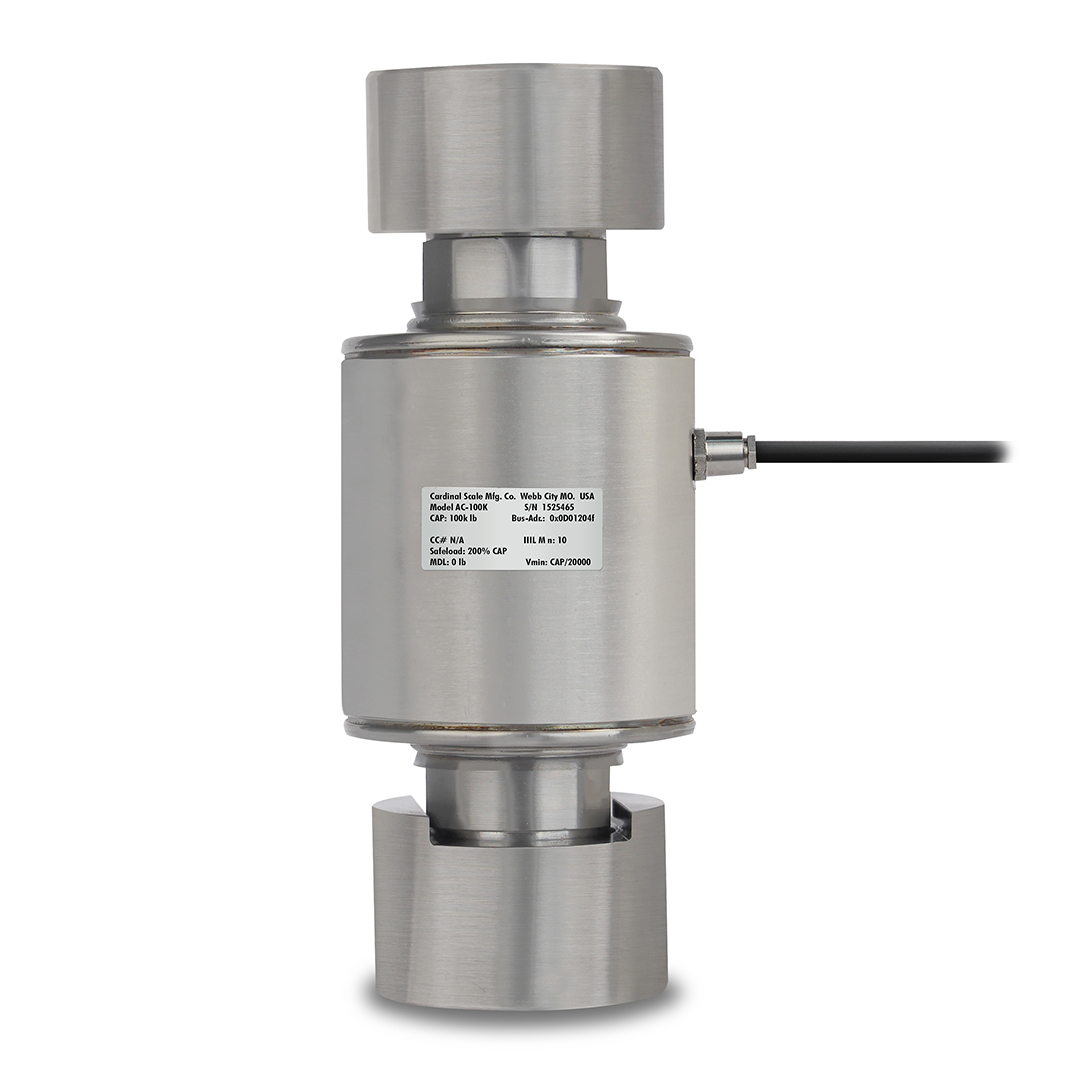

Cardinal Scale’s AC series load cells and electronics provide everything you need for a vehicle scale, minus the weighbridge. These stainless steel compression load cells feature anti-rotation mounting with extra robust upper and lower cups and a self-centering column. The NTEP- and OIML-certified AC series analog load cells are available in either 22,700 kg / 50,000 lb or 45,000 kg / 100,000 lb capacities. They feature a stainless steel, weatherproof junction box and 50 ft /15 m of cable per load cell. The IP69K-rated AC series is interchangeable with Cardinal Scale’s SCA series compression load cells for high-capacity vehicle scales and tank/hopper scales. These heavy-capacity compression load cells are ideal for multi-cell applications and prevent unwanted forces from affecting load cell performance.

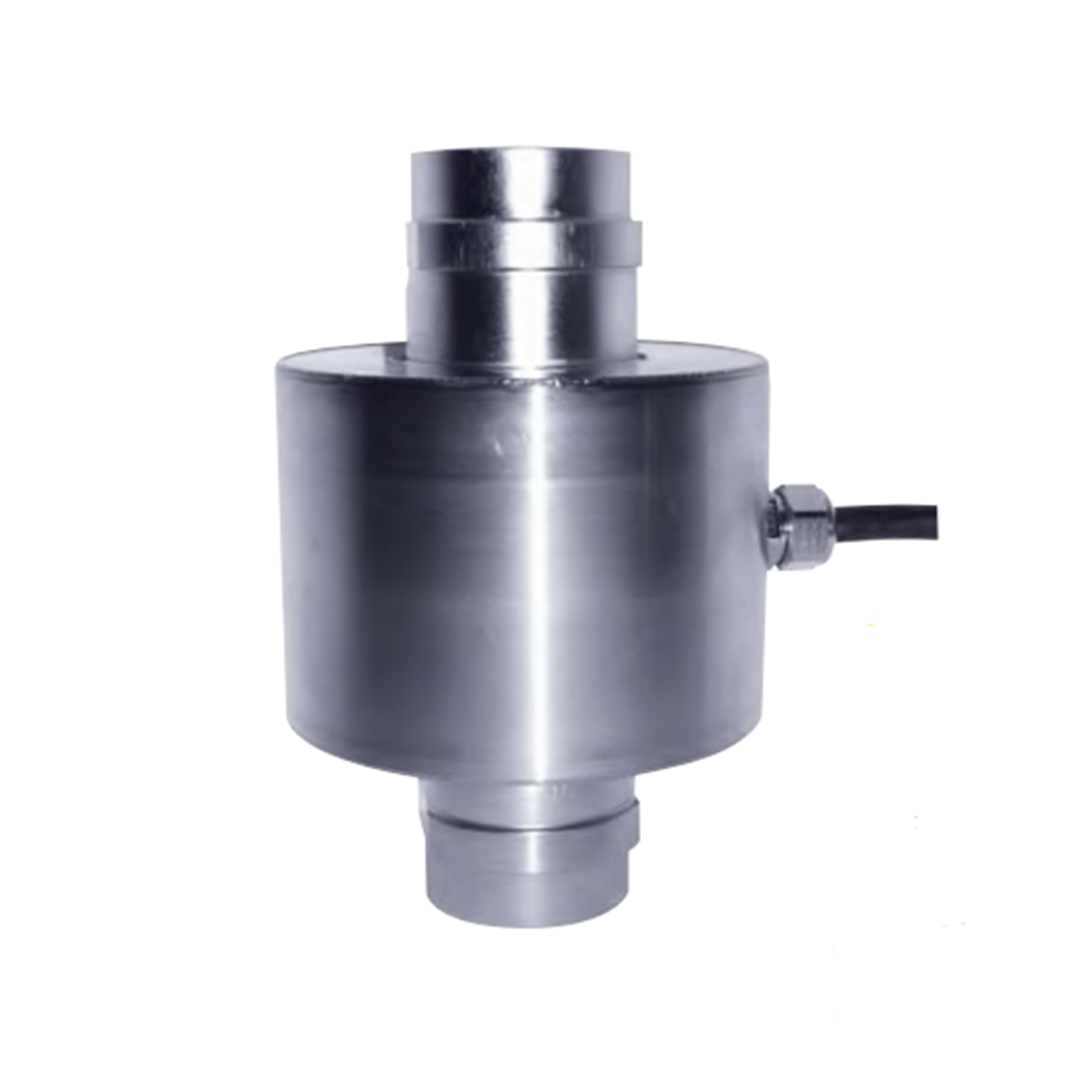

NFG-40T

The NFG-SS-40T is a stainless steel load cell, hermetically welded to IP68 protection, and approved up to 4,000d per OIML R60. It features a spherical self-centring base with an integrated anti-rotation system, making it ideal for use on weighbridges. Optional overvoltage protection and a shielded cable with rodent-resistant protection are also available.

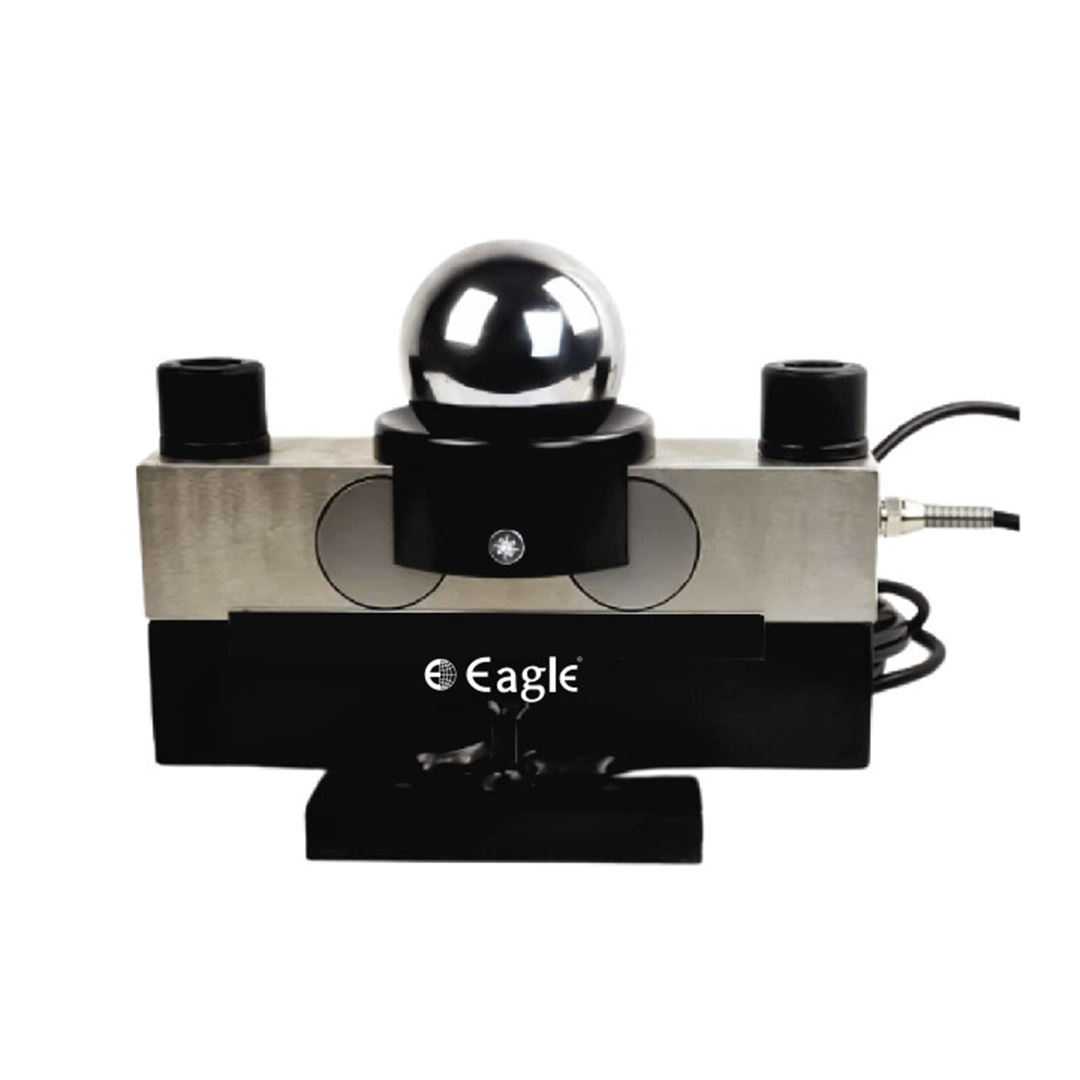

QS30T

The QS30T is a double-ended shear beam load cell built for industrial weighing applications. Constructed from nickel-plated alloy steel, it delivers reliable performance in harsh environments, with capacities ranging from 5 to 40 tons and an operating temperature range of -30°C to +70°C.

Eagle offers the QS30T in both conventional and digital Cup and Ball configurations, optimised for use in weighbridges. All variants are IP68-protected and suited to their respective accuracy classes, delivering consistent and dependable performance in heavy-duty environments.
